Floor Heating Cable 120V – 32-60 sq ft Heated Floor System, Underfloor Electric Heat Cable Warmer, Radiant Heated Flooring System for Tile with 7-Day/4 Event Programmable GFCI Thermostat, Made in USA

Price: $399.00 - $259.00
(as of Sep 06, 2025 15:22:41 UTC – Details)

Product description

Planning your Heatwave Cable Install and Sizing

Planning for your Heatwave cable installation starts now!

Picking the right size Heatwave cable begins by measuring the size of the area you wish to heat, not the total size of the area. For example, if you have a 60 square foot bathroom, but are only heating 42 square feet. Knowing that you are heating about 42 square feet, Heatizon recommends buying a cable system where the square footage is as close to the middle range as possible. Since Heatwave cannot be cut or shortened, getting the correct size floor heating system is crucial. For the example of heating 42 square feet, the Heatwave floor heating cable for 32-60 would be perfect for that project.

It is always easier to find places you don’t want to heat than trying to squeeze a bigger mat into a small space!

Remember, the red Heatwave heating element cannot be cut or shortened!

Perfect for monitoring your Heatwave system during all phases of installation to add another layer of protection to your investment. While it doesn’t replace resistance testing, the damage alarm alerts you in the case that something accidently happens to your Heatwave system, You then can stop, locate and repair the damage before moving on with your installation!

Alarms come standard with Standard Heatwave 240 volt cable and mat kits, and all Deluxe and Premium Heatwave kits.

View the Amazon promotion for Heatwave 120 volt mats and cable kits to add an alarm to your order.

Heatwave Cable – path to installation

Measure & Determine Spacing

The first step for installing a Heatwave cable floor heating system is to determine the spacing for your project.

Get the length of your Heatwave CableDivide the size of your area by the length of the cable (EX: 35/154=.23)Times the result by 12. This is your spacing. (EX: .23×12= 2.76″)

If your calculation is less than 2″, choose a smaller Heatwave cable.

If your calculation is larger than 5″, choose a larger Heatwave cable.

Be sure to follow all the instructions in the Heatwave manual during installation.

Installing Strapping and/or Clips

Now that you have the Heatwave Cable spacing, install the cable straps where you intend the cable to turn. The straps should be on opposite ends of the space to be heated, perpendicular from the cable. Make sure the straps are securely attached to the subfloor to ensure your Heatwave cable doesn’t shift while being embedded.

If you are using clips or other methods to attach the cable to the floor, the cable can be fastened to the floor as you go while following the pre-determined spacing.

If using a product that the cable clips into, follow the instructions for installing that product first. Install the Heatwave floor heating cable as close as possible to the determined spacing.

Install the cable

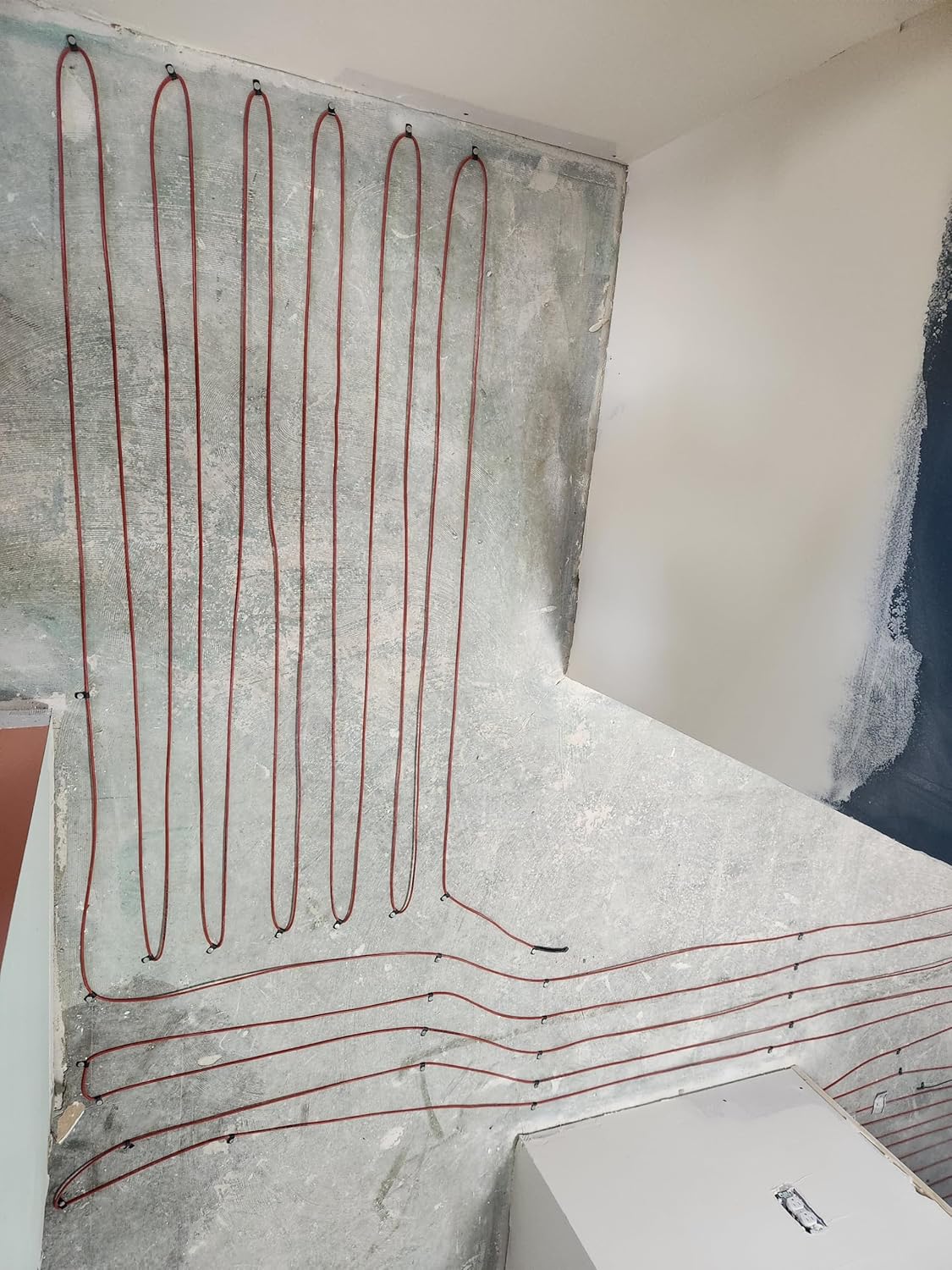

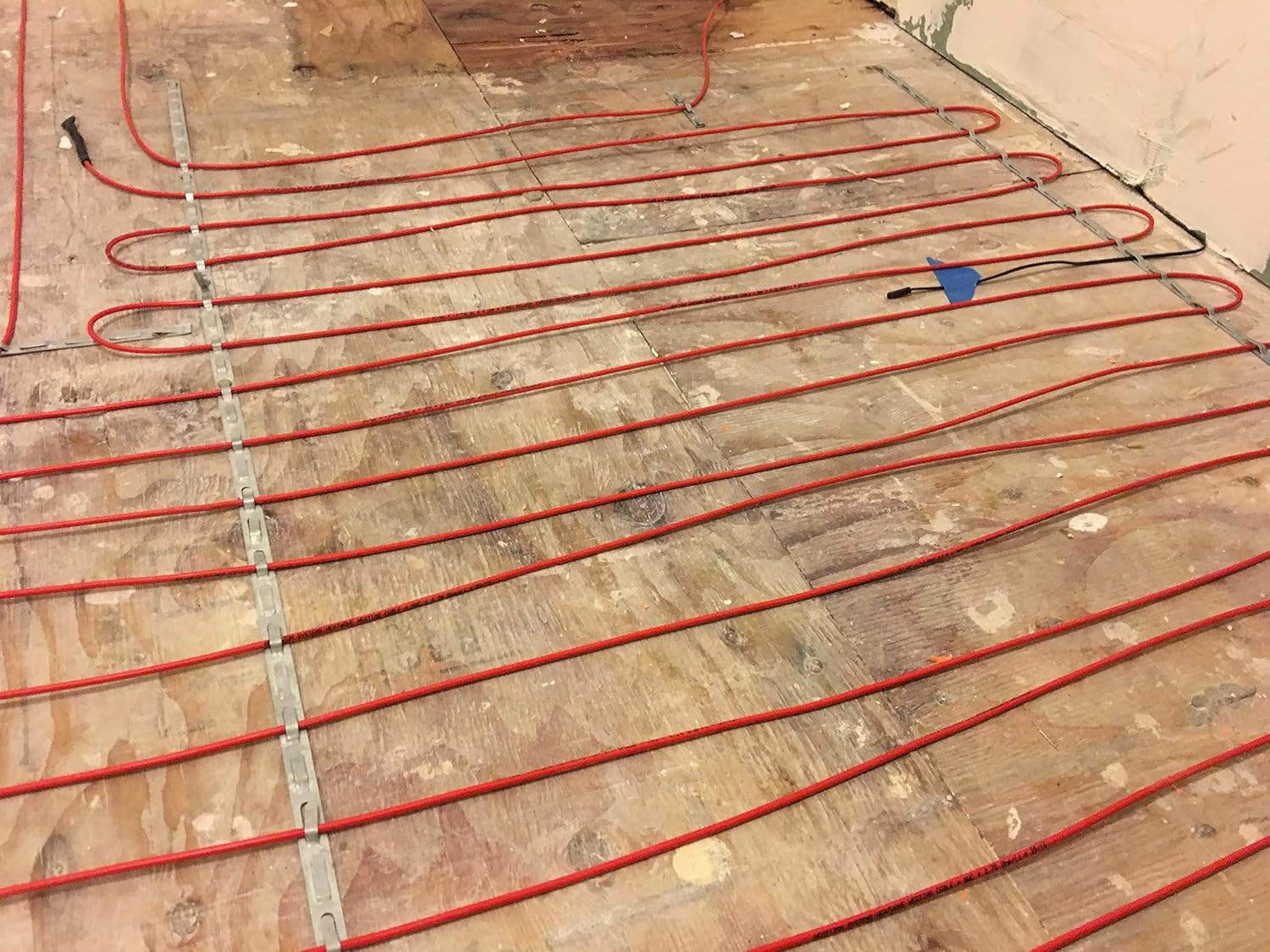

Once the strapping is installed, begin to layout the cable in a serpentine pattern at the appropriate spacing. Best advice is to leave the cable loose in the strapping (don’t bend the tabs over the cable yet.) If you have to move or adjust the cable, having the tabs loose, allows this to go faster.

Once you have all the Heatwave cable loosely in the straps and have used the entire roll, now tighten the tabs in the strapping, not too tight, you don’t want to damage the cable. Tight enough to keep the cable from shifting.

Complete your Heatwave cable testing and continue with your flooring install.

Heatwave M429 Thermostat

Included Floor Sensor

The M429 Floor Sensor comes with every Heatwave Floor Heating system sold. The floor sensor allows the Heatwave system to operate at peak efficiency, by monitoring the temperature of the floor.

This floor sensor is compatible with all Heatwave thermostats, standard, touchscreen, and WIFI models.

15′ Long Cable 10 kOhm

7 Day/4 Event Programmable Thermostat

With Floor Sensor

The Heatwave Floor Heating system comes standard with the M429 programmable thermostat. Easy to install and use, but still versatile enough to span all of our different Heatwave options. The M429 switches either 120 or 240 volt systems, has built-in GFCI protection, and two sensors.

The Heatwave thermostat allows users to set a schedule to their liking, or hold and maintain a set temperature.

The internal sensor also allows for adjustment for room-temperature if so desired.

7, 6/1, or 5/2 schedule options & up to 4 event programming Class A GFCI (5 mA trip level) Simple user interface Pre-programmed for quick set up Multi voltage: 120/208/240 V & Output Relay 15A Can be set to automatic, manual, or comfort mode Includes 2 sensors: a built-in air sensor and floor sensor thermistor with 10 feet of NTC (12K) sensor cable Temperature control range: 41ºF to 104ºF

We obsess about our manual!

Uh… what? That’s right! We obsess over our manual!

You are purchasing an UNDER floor heating system that will be with you for many, many years! We’ve taken care of engineering a high-quality product, but we also know that a high-quality product has to be installed right, the first time. We revise our manual annually, when new install methods are refined, or when we see our customers asking similar questions, or even addressing custom or special situations. We put all of it in our manual. We know the Heatwave floor heating system might be installed on a weekend, early morning or the middle of the night, following our manual is the next best thing to having us install it for you!

Still have questions? Our technicians aren’t just in some call center overseas. They are US-based, are experts in not only the Heatwave system, but electric radiant floor heating in general. Plus, the person you talk to, gives feedback that goes into the manual.

Heatwave 120 Volt Cable

The 120 Volt Heatwave Floor Heating Cable is perfect for the following situations:

Odd shaped areasLooking to add floor heat with more customizationSize areas 8 to 120 square feet.Variable heat output based on spacing (8 to 15 watts per square foot)

Heatwave 240 Volt Cable

The 240 Volt Heatwave Floor Heating Cable is perfect for the following situations:

Odd shaped areasLooking to add floor heat with more customizationSize areas 16 to 239 square feet.Variable heat output based on spacing (8 to 15 watts per square foot)

Heatwave 240 Volt Cable

The 120 Volt Heatwave Floor Heating Mat is perfect for the following situations:

Square or rectangular areasLooking to add floor heat without a lot of installation fussSmaller size areas 10 to 100 square feet.Same heat output as 240 volt version (12 watts per square foot)

Heatwave 240 Volt Mat

The 240 Volt Heatwave Floor Heating Mat is perfect for the following situations:

Square or rectangular areasLooking to add floor heat without a lot of installation fussSize areas 40 to 160 square feet.Same heat output as 120 volt version (12 watts per square foot)

120 Volt Heatwave Mat

240 Volt Heatwave Mat

120 Volt Heatwave Cable

240 Volt Heatwave Cable

Heatwave Steps To Install Success!

Get the Right Size

Be sure to order a Heatwave system for the area to BE HEATED, not the total area. The Heatwave heating element CANNOT be cut or shortened to a fit a space.

Smaller size systems are available to fit smaller areas.

Avoid performing any cutting/drilling tasks on a finished/partially finished floor that could cause damage to heating element.

Don’t Power on Until…

Do not power on the Heatwave System until it has been completely embedded in a cement-based compound (thinset/mortar/self-leveling) and that compound is completely dried.

Do not power on a Heatwave System to “test” or to dry out an embedding compound.

Completely Embed

The Heatwave cable MUST be completely embedded (unable to be seen) in a cement-based compound (thinset/mortar/self-leveling).

Both connection/junction points must also be fully embedded, the connection point at the end of the heating element and the connection point between the red heating cable and the black unheated (cold lead) cable.

Ensure that air pockets in mortar/thinset/self-leveling compound with exposed heating element, get fully filled-in.

Perform All Tests

Perform all required tests outlined in the installation manual at several stages throughout installation to ensure that heating element has not been damaged.

Failure to perform all the required tests at several stages can cause system damage to be missed which can lead to system errors, ground faults, non-functional systems, and unrepairable damage.

Not Just Heatwave Experts, but Electric Radiant Heating Experts

Heatwave is just ONE of Heatizon’s wide range of amazing electric radiant heating products. We apply our vast knowledge into every product we make. Not only can we heat your floors, but we can heat your driveways, gutters, pipes and even your roof.

PROGRAMMABLE 7-DAY/4 EVENT THERMOSTAT INCLUDED: Enjoy the convenience of a programmable radiant floor heating system with our HEATWAVE Heating Cable, featuring a radiant floor heating thermostat. You can customize your heating schedules to fit your lifestyle, whether you’re using it as space heaters for indoor use or a garage heater. Ideal for creating a heated tile floor kit in your home, this also serves as a monitor heater for your RV heated floor, letting you enjoy energy-efficient comfort.
VERSATILE HEATING CABLES FOR SMALL TO LARGE AREAS: Choose the ideal electric floor heating system for your space! Heatwave Cable Length: 154 Feet. Voltage: 120V – Amps: 4 – Watts: 480 – 15 ft Cold Lead Floor Heating Cable Coverage/Watt Density: 2.5″ Spacing (32 sqft – 15 w/sqft ) – 3.75″ Spacing (48 sqft – 10 w/sqft ) – 4.7″ Spacing (60 sqft – 8 w/sqft) In-floor heating cable system designed for 32-60 Square foot areas. Important: DO NOT CUT OR SHORTEN THE RED HEATING ELEMENT.
HEATWAVE CABLE MONITOR & DAMAGE ALARM INCLUDED: Safety and reliability are at the forefront with our HEATWAVE product’s electric radiant floor heating system. The house heating systems of the heated floor kit includes a built-in monitor and damage alarm to prevent costly repairs. Detailed manuals make this under tile floor heating system easy to install, even for DIY enthusiasts. Experience peace of mind with a radiant floor heater that ensures efficient performance and full home comfort.
EMBEDDED IN CEMENT-BASED COMPOUNDS FOR EFFICIENCY: The electric floor heat from our programmable electric heater is embedded in cement-based compounds, guaranteeing optimal heat distribution for various floor types – be it tile, laminate, or carpet. Ideal for enhancing room quality like in bathrooms with a heated floor under vinyl plank, this setup offers modern elegance without the bulk, making your electric floor heater discrete and stylish across all living spaces.
BUILT-IN GFCI PROTECTION: Our in floor heating system comes with built-in GFCI protection, prioritizing safety. The durable construction using copper, nickel-chrome, and plastic offers lasting performance for an in floor electric heater. Enjoy a floor heater as a reliable alternative to conventional heated bathroom floor kit combining efficiency with a subtle underfloor heating system. Experience the features of superior floor heaters with a radiant floor thermostat.
